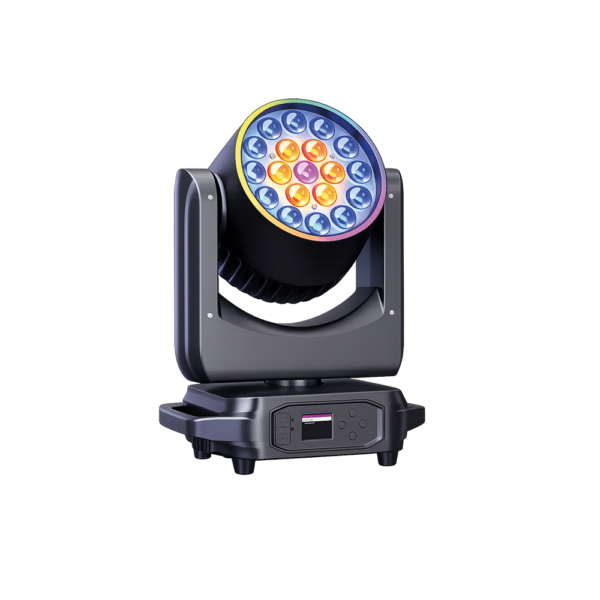

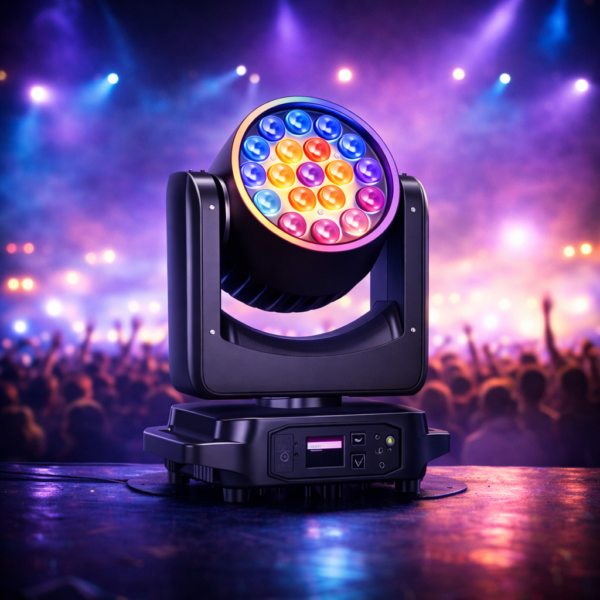

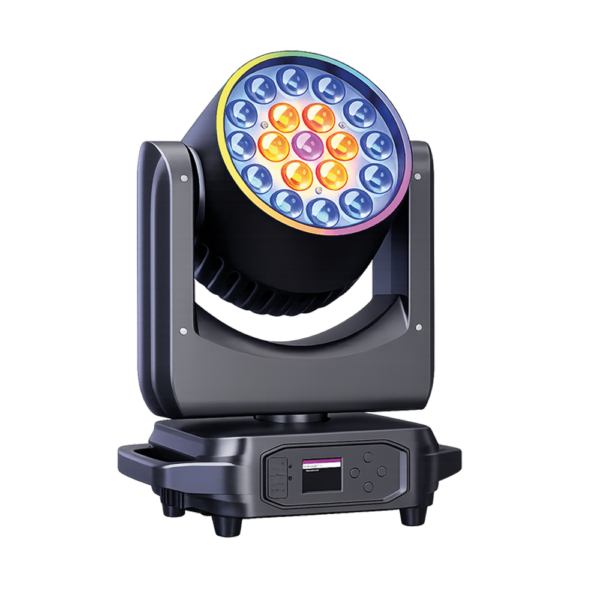

The AU-L-HR-200 is a high-performance moving head light designed to deliver vibrant colors, powerful illumination, and dynamic effects for stages, concerts, clubs, and professional events. Combining rich RGBW lighting with smooth zoom and precise beam control, it creates stunning wash and beam effects that enhance any performance atmosphere. Its advanced optical design ensures sharp and vivid projections, while its flexible control modes make it easy to integrate into any lighting setup.
Built with a durable and modern structure, the AU-L-HR-200 is an ideal solution for lighting professionals and event productions seeking powerful, versatile, and visually impressive lighting effects.
Technical Specifications
| Parameter | Value |
|---|---|
| Colour | Black |
| Material | aluminum alloy structure + plastic shell |
| Voltage / Frequency | AC110-220V — 50/60Hz |
| Rated power | 285W |
| Light source | 19PCS 15W RGBW LEDs + 60PCS 0.2W 5050RGB LEDs |
| Strobe | 1-25Hz |
| Fuse | 3A |
| X axis | 540° |
| Y axis | 220° |
| Color temperature | 700-8000K |
| Zoom angle | 10°-60° |
| Control mode | self-propelled, voice control, master-slave, DMX |
| Protocol | standard DMX512 protocol |
| Channel number | 17/25CH |
| Plug type | ohm head input/output (up to 4 units) |
| Illuminance | 201Lux@5 meters |
| Heat dissipation mode | temperature-controlled intelligent heat dissipation |
| LED average life | 50000H |
| Data connection | three core XLR input/output |
| Display | LCD liquid crystal display |
| Working environment | -20°C-40°C |
| Dimming | 0-100% linear adjustment |
| Protection class | IP20 |
| Focusing | Using optical combination, the effect is far better than ordinary wash lights, and can project HD effect |
